milk tea sachet bag automatic 4 lanes packaging machine

FOB Reference Price:Get Latest Price
$18,000.00 - $45,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
50Hz
Model Number:
MCDL190T MCDL320T MCDL480T MCDL800T
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 70 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Application:
Food, Medical, Chemical
Packaging Material:
Plastic, Paper
Type:
Multi-Function Packaging Machine
Applicable Industries:
Building Material Shops, Food & Beverage Factory, Food & Beverage Shops
Condition:
New
Function:
Filling, Sealing, weighing, counting
Packaging Type:
Bags, Film, Foil, Pouch
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Place of Origin:
Guangdong, China
Brand Name:
Marchi
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Packing speed:
35~50cut/min
Bag width:
16~42mm
Material:
SUS 304 /316
bag type:
Sachet Pillow Bag / 3/4-side Seal,tailor made bag
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
International export standard
Port
Guangzhou,China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 70 To be negotiated
Product Introduction

milk tea sachet bag automatic 4 lanes packaging machine

Application
Power, liquid, cream and granule like sugar, coffee packed in a long narrow pouch. Packing for different materials can be accomplished by different dosing unit.

Technical Parameters

Model
MCDL 190T
MCDL 320T
MCDL 480T
MCDL 800T
Bag length(mm)
70~200
Bag with(mm)
16~42
16~30
16~55
16~90
Film width(mm)
Max.190
Max.320
Max.480
Max.800
Lanes
2
4~6
4~8
6~12
Capacity
35~50 cutting/min)
Sealing size(mm)
Back sealing:5~10   Horizontal sealing 10~20 (can be customized)
Power supply
220v 50Hz 3.5kw
220v 50Hz 4.5kw
220v 50Hz 5.5kw
220v 50Hz 7.5kw
Compressed air
0.6~0.8MPa    0.6m3/min

Bag pulling type
Inverter motor stick pulling

Servo stick pulling
Cutting mode
flat cutting , zigzag cutting , rounded cutting , spout cutting ,multi-bag cutting ,etc
Dimension L*W*H(mm)

825*1071*1576

1064*1197*1350

1413*1674*2000

1798*1744*2000

Equipment Features

1. The machine can automatically complete multi-lane products measuring, feeding, filling and stick forming(date code printed), stick sealing and cutting.
2. Adopt advanced technology, humanized design, Japanese "Panasonic" PLC + 5.7" touch screen control system, a high degree of automation.
3. Automatic alarming, stopping and self-diagnosing when failure, can be viewed directly from the screen. It is safe, easy-using, quick maintain, automatically display the number of sticks, and can easily count the workload of the machine.
4. Using the working principle of heat sealing, the motor controls film-pulling and the speed of stick -pulling is fast and stable.
5. With high sensitivity photoelectric switch, the printing cursor can be automatically tracked and positioned, and the complete trademark pattern can be obtained when using the packaging material which has a color mark.

Machine Details

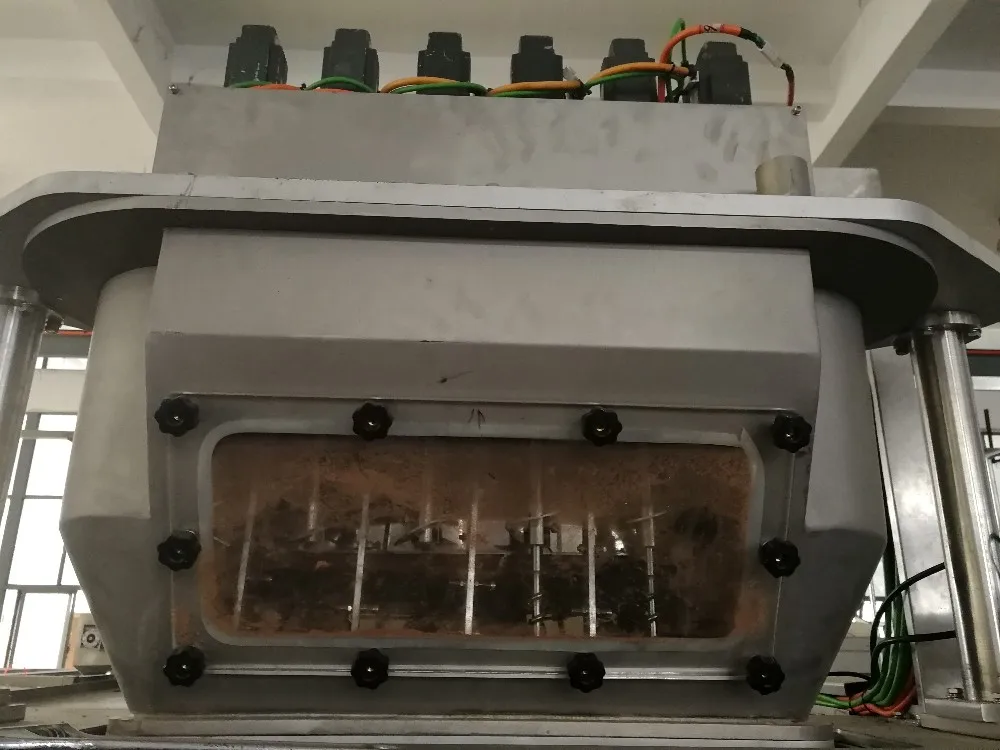

Metering auger: this is for powder, liquid and granular product, different metering device will be equipped.

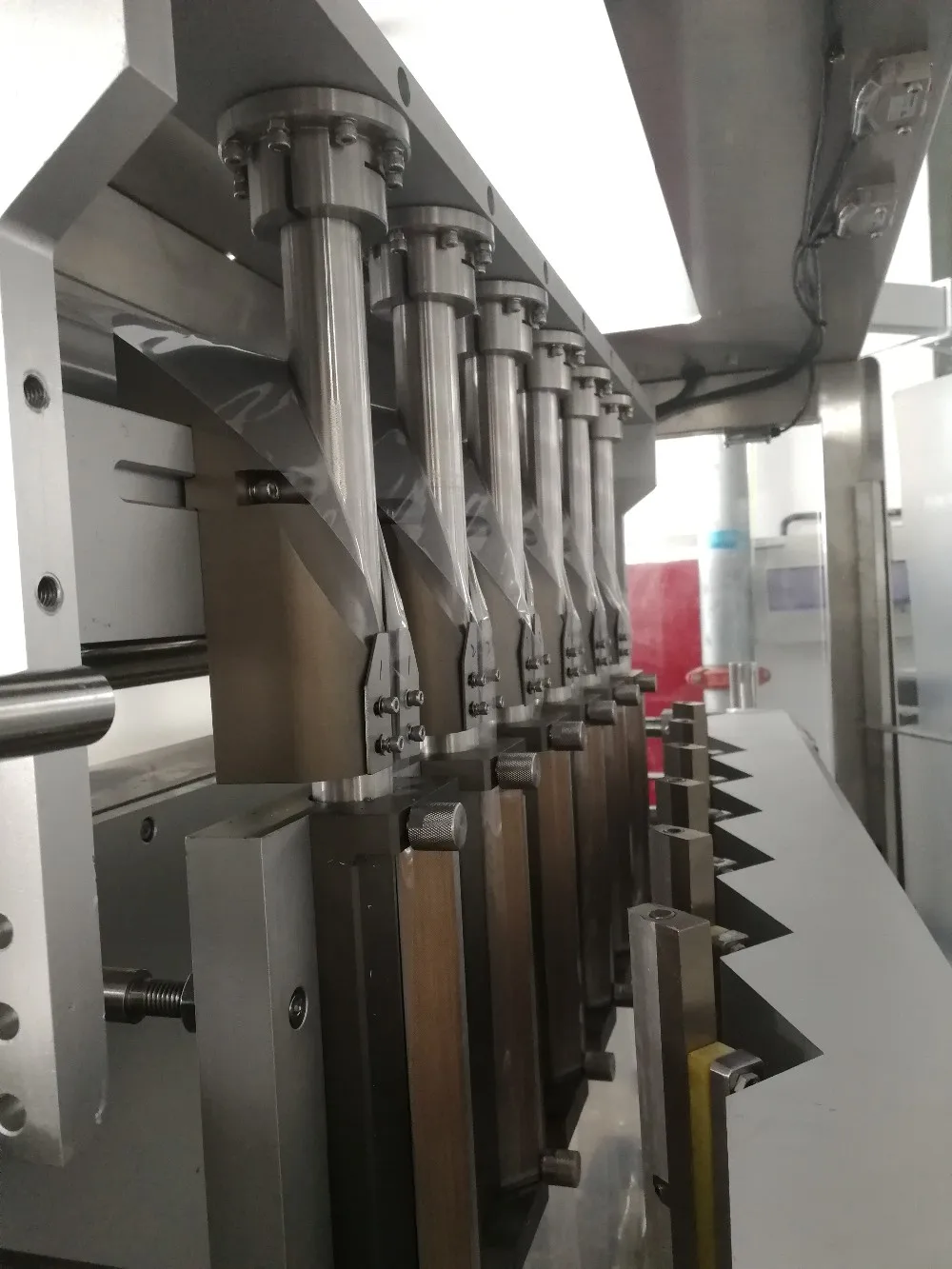

Former& sealing mechanism: one-time molding former, firm and reliable, ensuring accuracy.

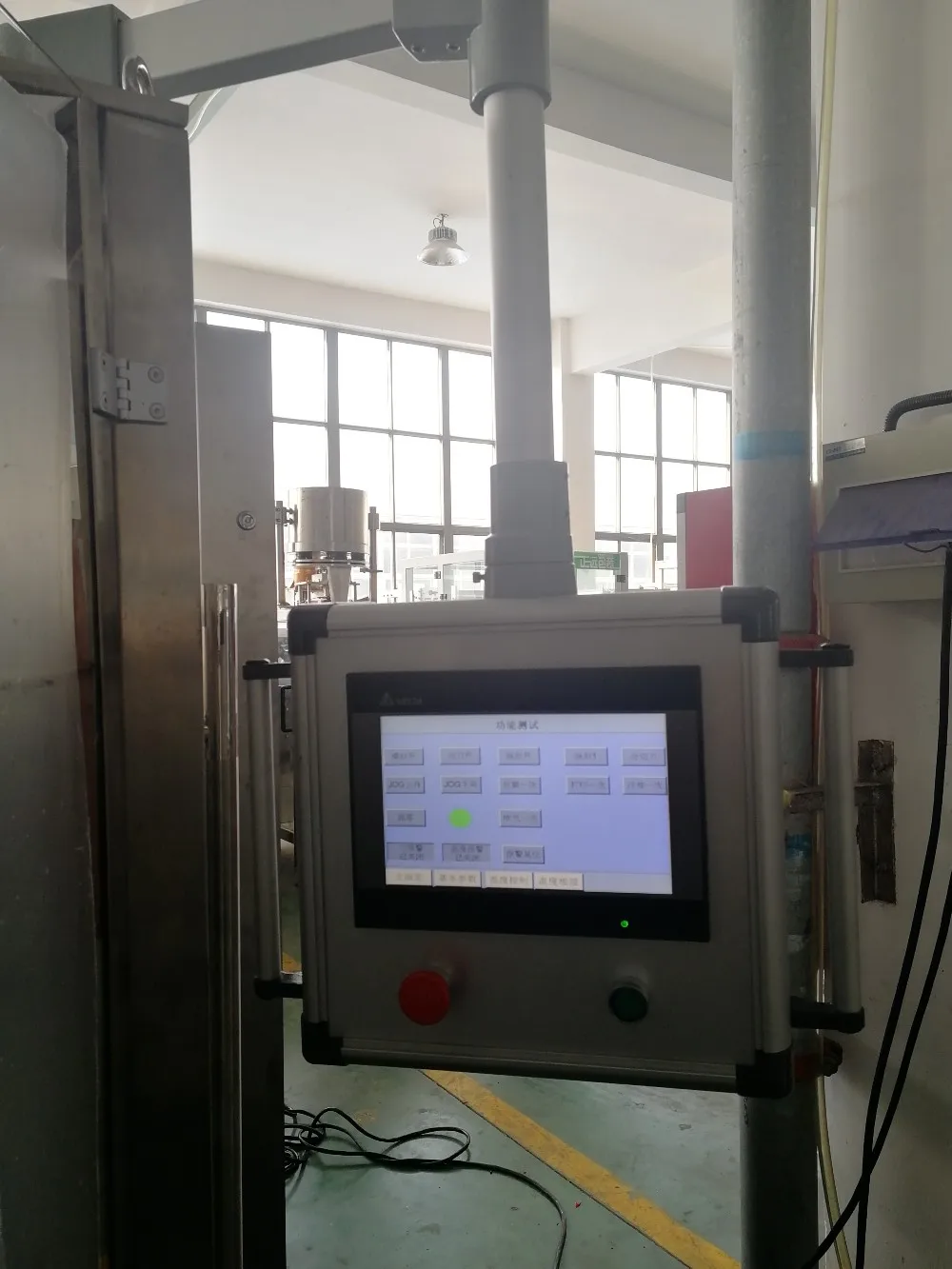

Siemens touch screen: simple operation interface,error warning message at a glance.

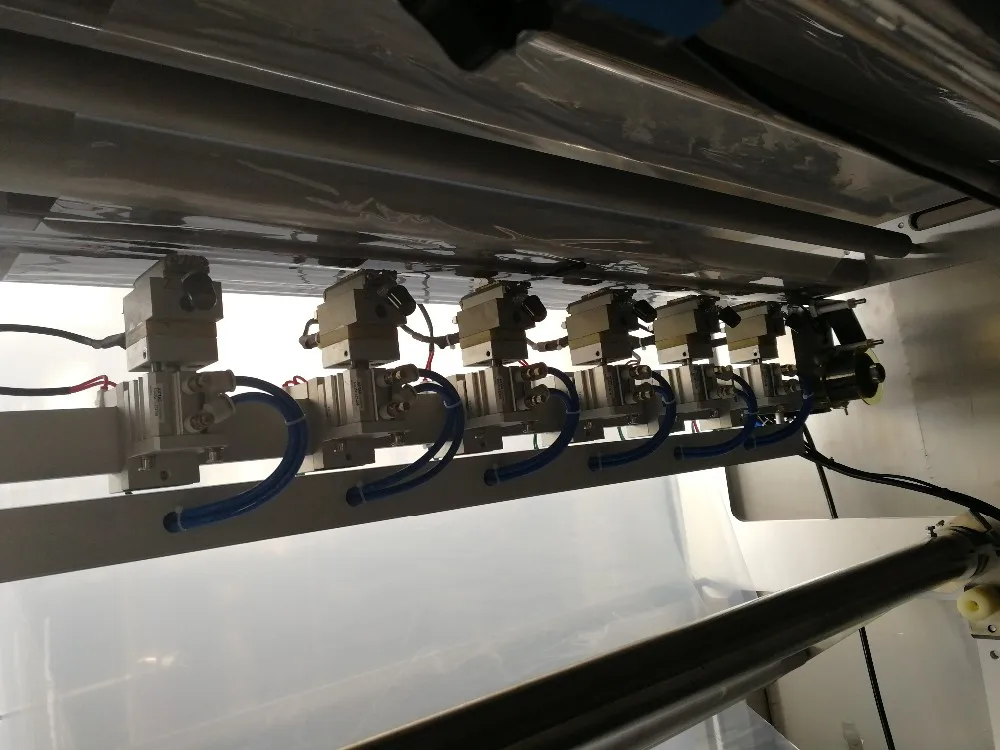

Horizontal sealing mechanism:surface pattern and sealing cutter form are designed according to customer requirements.

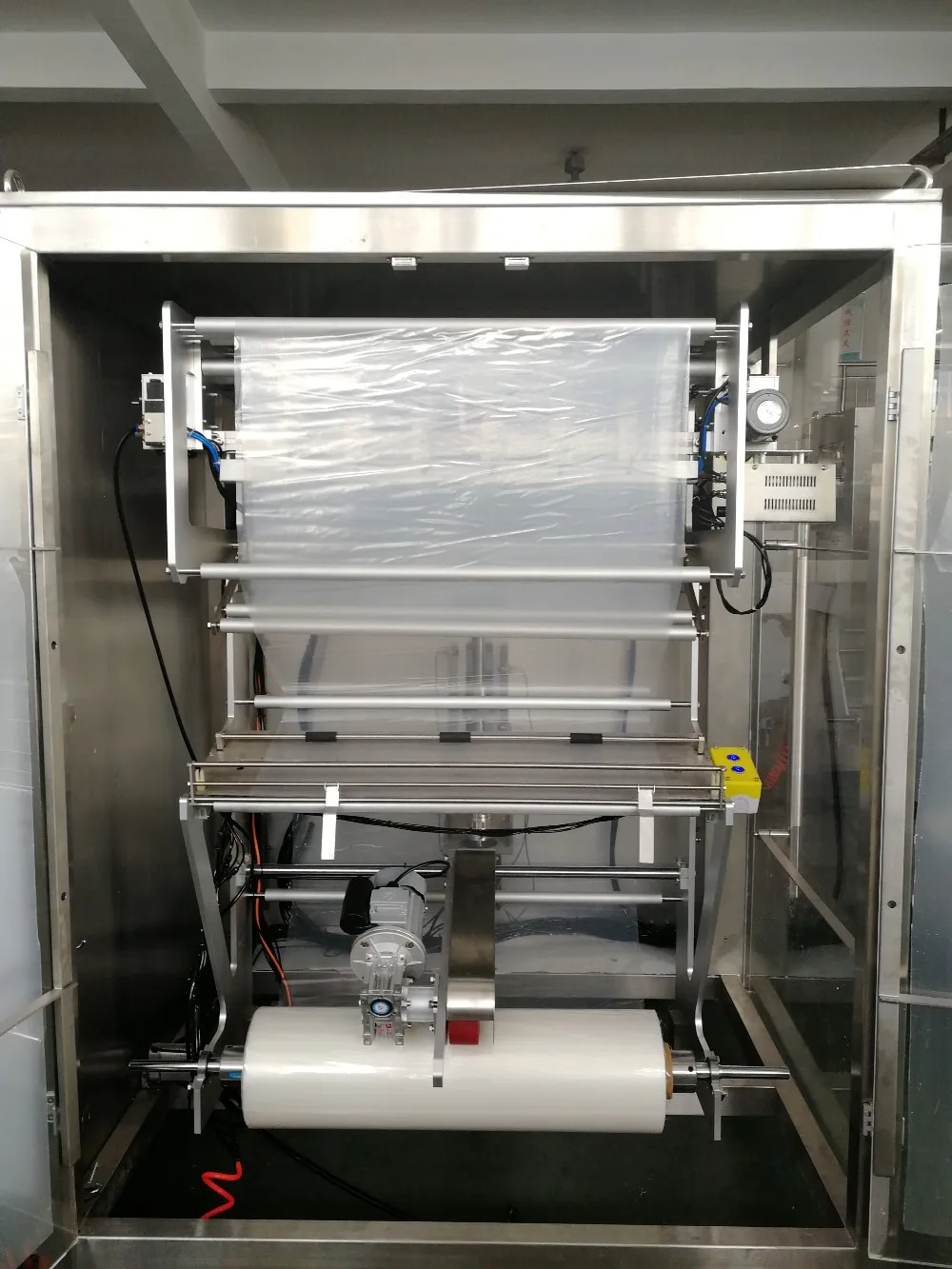

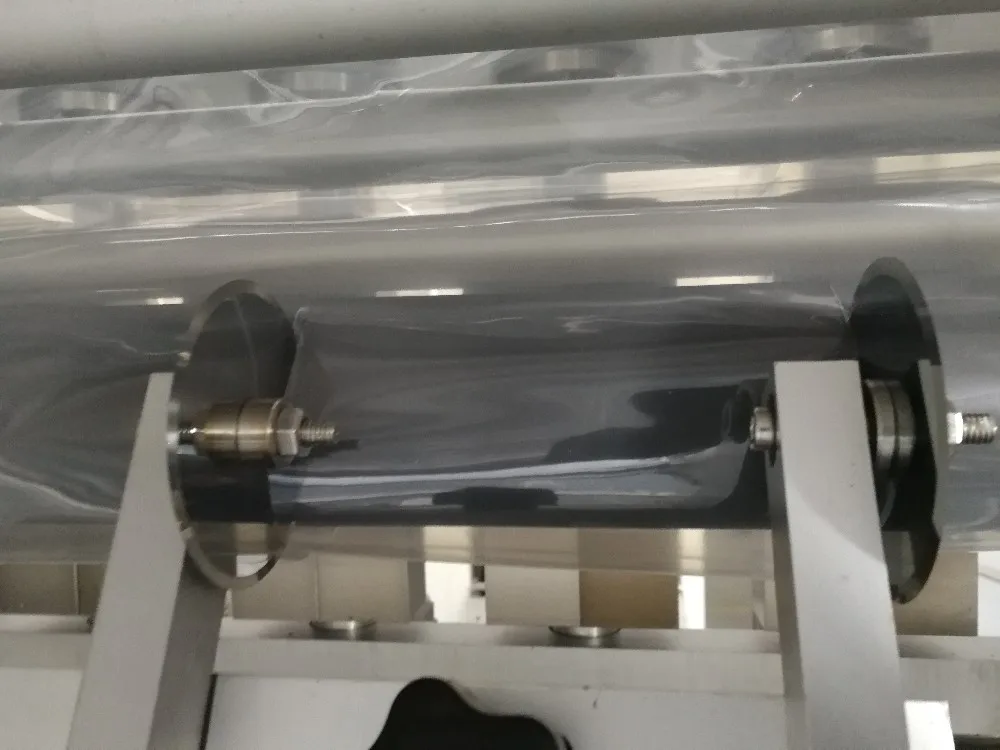

Film releasing mechanism:Motor control, film release speed is stable and accurate, and the static elimination mechanism can be selected.

Printer: You can print the production date, batch number, text, etc. The word module needs to be replaced manually. Other brands also optional.

Film cutter: good material, strong, no deformation, determine the precision of cutting, long service life.

Multilane number: we suggest one machine for one size,because is difficult to changeover.

Bag Types:

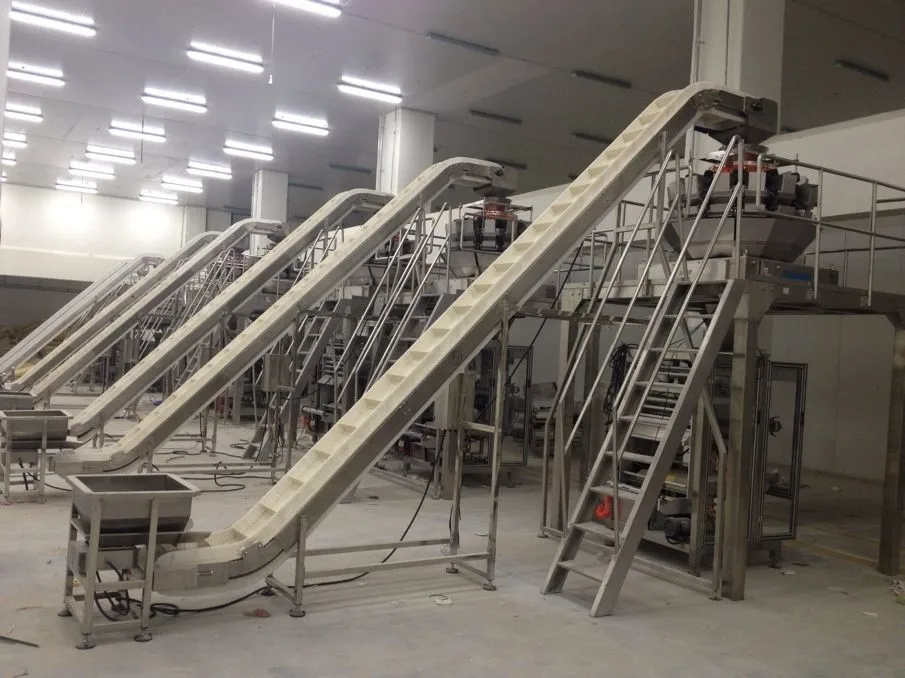

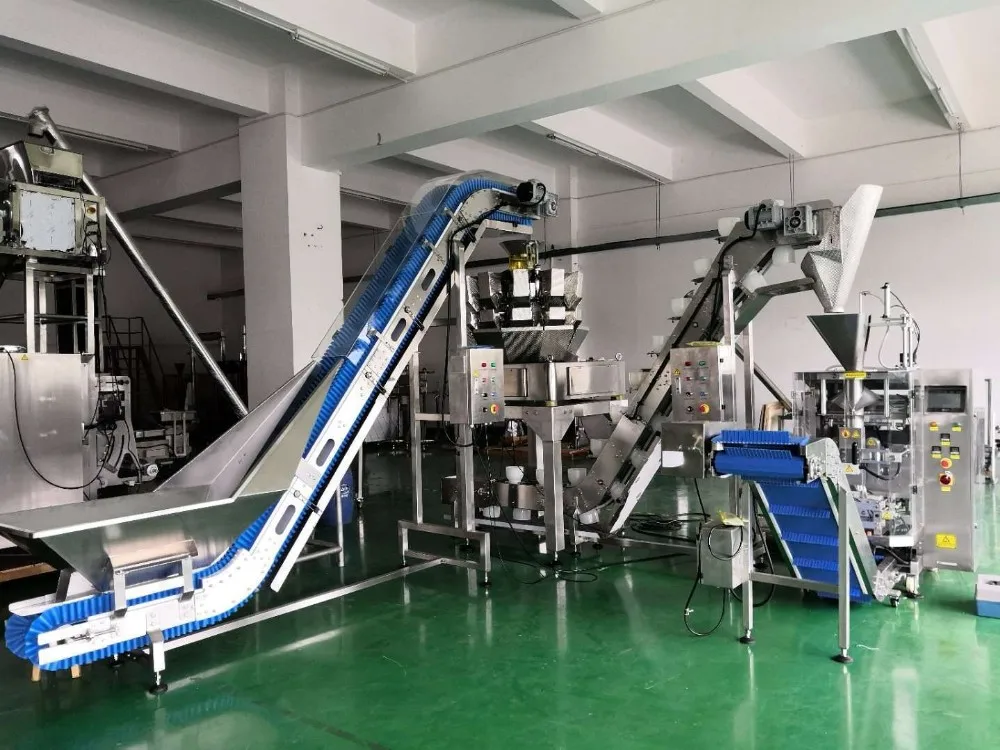

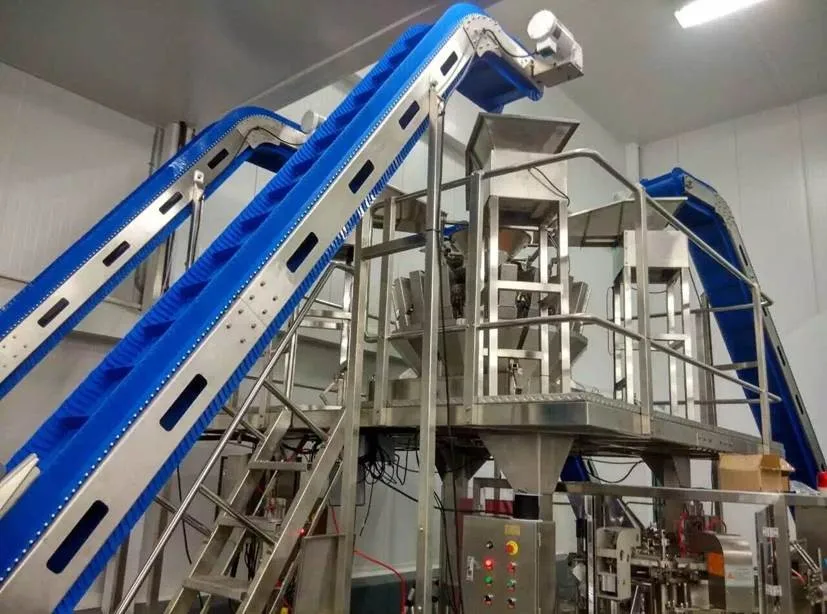

Customers Factories

blueberry packaging machine

maize packaging machine

                   dumpling packaging machine

                        bean packaging machine

                   herbal packaging machine

                        dog feed packaging machine

Service &Certificate

1.Turnkey Solution Provider

Marchi packaging has the ability to be your turnkey solution provider, and we have a unique team of mechanical, electrical, program process engineers which allows us to deliver your solution smoothly.

2. Factory Acceptance Testing

The engineers available in the service team is also utilized for trial testing thoroughly as per the client's requirements before the dispatch.

3.Professional Technical Support

A board range of technical supports are provided aims at ensuring our customers experience the maximum up-time after-sale service, these services include:

▪  Installation and commissioning specification

▪  Telephone /video and online support

▪  Preventive maintenance programs design

▪  Equipment optimization services

▪  Trained engineer machine installation and commissioning paid service

4.Commissioning and Troubleshooting Training

Qualified training ensures machine effectiveness, minimize cost and reduce downtime, Marchi pack provide factory-based technical training that can be delivered either in our factory or customer's site.

5.High Availability Genuine Spare Parts

All critical spare parts are ready for instant dispatch to our customers, genuine spare parts guarantee to protect and maximize machine lifetime.

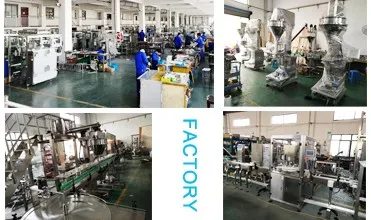

Our Company

Where we are?

Guangzhou city, Guangdong Province, China
Why choose us?
√ PepsiCo China preferred supplier
√ Turnkey solution provider
√ 25 years' working experiences
√ Several hundred customers cases
√ Research, design, manufacturing, selling, after sale service, complete and individual department
√ A young and ambitious team that keeps learning

While focusing on the development of the packaging equipment market, Marchipack has exchanged and cooperated with many scientific research institutions at home and abroad, and the capabilities of R&D, manufacturing, and engineering projects have been rapidly improved.

There are more than 300 varieties of products we have and various products are increasingly perfect.

>All the electrical control components are well-known brands with reliable performance.

>Do all the factory inspections, full testing, to ensure that the quality meets market demand.

What do we do?

> 1. Vertical packaging machine
> 2. Premade pouch packaging machine
> 3. Multilane stick pack packaging machine
> 4. Linear bottle filling machine
> 5. Secondary packaging machine
> 6. Vacuum packaging machine
> 7. Heavy bag packaging machine
> 8. Cartoning machine
> 9. Other ancillary machines

History Cooperation

Since its inception, Marchi has always been based on customer needs and has provided comprehensive overall design services for more than 100 large enterprises, and has won recognition and praise from the companies.

Packaging & Shipping

Firmly packed fumigation-free wooden carton, with shipping marks.Check packing list without any missing.

Packaging about protect the goods against damages during handling,storing and transportation.

World famous shipping company promise maritime safety.

[FAQ]

1.Payment Terms?
40% down payment at order against the invoice.
60% of the contract value shall be payable against presentation of shipping documents, invoice and Seller's draft drawn at sight on the opening bank.


2.Machine lead time?

45-60day base upon the receive of downpayment.


3. Installation and commissioning engineer fee?
100 USD/each day/one person, Board and lodging, visa and round trip tickets shall be born by buyer.


4. Are you a manufacturing or trading company?
We are a manufacturing company, have design, manufacturing, sale, aftersale service complete and individual departments.


5. What is the estimate machine lifetime?
 In the case of proper maintenance of equipment, according to past customer statistics, it can be used for 10-20 years.
