Guangzhou Marchi multi functional pillow bag granule packing filling and sealing machine for spicy potato strings

FOB Reference Price:Get Latest Price
$5,900.00 - $8,500.00 / Set | 1 Set/Sets (Min. Order)
Power:
50Hz
Model Number:
MCDB-200 MCDB-300 MCDB-430
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms
Condition:
New
Function:
FILLING, Sealing, Gluing, SLITTING, weighing
Application:
Food, Beverage, Commodity, MEDICAL, Chemical, coffee, sugar, liquid ,paste,washing powder
Packaging Type:
Stand-up Pouch, Bags, zipper bag
Packaging Material:
Plastic, Paper, aluminum foil
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V 50Hz 5.5kw
Place of Origin:
Guangdong, China
Brand Name:
Marchi
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Video technical support, Online support
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
International export standard
Port
Guangzhou,China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Product Application

FAMILY SIZE CHICKEN PARMIGIANA & PENNE quad seal bag packaging machine

Zipper packing machine is mainly used for filling powder materials, suitable for good or low fluidity granule such as milk powder, protein powder, flour, solid drinks, cocoa powder, chicken powder, white sugar, food additives, feed, pharmaceutical raw materials, pesticides, dyes, flavors, and fragrances, etc.

Product Introduction

Bag Type:
Single Station doypack packaging machine is suitable for doypack bag, pillow bag, spout bag, paper bag, stand-up pouch

More details

                           Storage bag machine

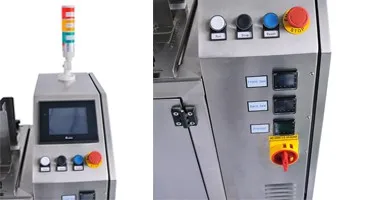

  Indicator light                           Control button

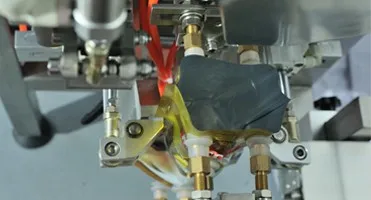

                                   Filling & Picking

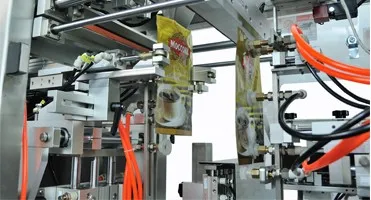

                                                 Open bag

Technical Parameters

Model
MCDB-200
MCDB-300
MCDB-430
Bag size range (L x W)mm
(100-200)x(70-150)
(100-300)x(80-300)
(100-430)x(80-430)
Bag material
composite premade bag (PET/PE)
Bag type
Gusset bag, stand-up bag, zipper bag
Sealing type
Straight grain, pitch is 1mm(optional reticulate)
Sealing width(mm)
10 (5-20 can be customized )
Speed(bag/min)
10-26
10-15
10-30
Air compressed (MPa)
0.65
Powder supply
220V, 50-60Hz, 1kw
Dimension(L x W x H)mm
1080x535x1010
1770x510x1230
1770x510x1360


Equipment Features

- Packaging process: bag-picking -- bag-opening -- filling -- sealing -- product output.
- The machine USES the cylinder transmission, the performance is very stable, the maintenance is simple, the service life is longer, the breakdown rate is low.
- The conveyer belt delivers the bag, more accurate and convenient.
- The machine adopts vacuum bag opening mode, independent vacuum pump, ensuring negative pressure stability.
- Different bag widths can be adjusted.

- Waterproofing function of work surface.
- In line with sanitary standards, easy to clean.
- Adopt advanced technology, humanized design, Japanese PLC+5.7 "touch screen control system, simple and convenient.
- All imported electrical and pneumatic components, to ensure the stable operation of the machine, to achieve high efficiency, low failure of mass production.


Safety Performances
1. No pouch - no filling - no sealing.
2. The pouch cannot be opened or opened incompletely - no filling - no sealing.
3. Heating device fault alarm.
4. The machine automatically shuts down when pressure current is lower than setting before.
5. The machine automatically shuts down when the hood is not closed or the door of the electric cabinet is not closed.

Related Products

  Guangzhou Marchi turntable bag-feeding packaging machine

  Guangzhou Marchi  small tea bag packing machine for herb tea bubble tea

Guangzhou Marchi sachet water filling and sealing machine three sides seal food grade machine

Guangzhou Marchi Breaded Chicken Breast Nugget 2kg film type bag weighing and filling machine

Customers Factories

blueberry packaging machine

maize packaging machine

                   dumpling packaging machine

                        bean packaging machine

                   herbal packaging machine

                        dog feed packaging machine

Service &Certificate

1.Turnkey Solution Provider

Marchi packaging has the ability to be your turnkey solution provider, and we have a unique team of mechanical, electrical, program process engineers which allows us to deliver your solution smoothly.

2. Factory Acceptance Testing

The engineers available in the service team is also utilized for trial testing thoroughly as per the client's requirements before the dispatch.

3.Professional Technical Support

A board range of technical supports are provided aims at ensuring our customers experience the maximum up-time after-sale service, these services include:

▪  Installation and commissioning specification

▪  Telephone /video and online support

▪  Preventive maintenance programs design

▪  Equipment optimization services

▪  Trained engineer machine installation and commissioning paid service

4.Commissioning and Troubleshooting Training

Qualified training ensures machine effectiveness, minimize cost and reduce downtime, Marchi pack provide factory-based technical training that can be delivered either in our factory or customer's site.

5.High Availability Genuine Spare Parts

All critical spare parts are ready for instant dispatch to our customers, genuine spare parts guarantee to protect and maximize machine lifetime.

Our Company

Where we are?

Guangzhou city, Guangdong Province, China
Why choose us?
√ PepsiCo China preferred supplier
√ Turnkey solution provider
√ 25 years' working experiences
√ Several hundred customers cases
√ Research, design, manufacturing, selling, after sale service, complete and individual department
√ A young and ambitious team that keeps learning

While focusing on the development of the packaging equipment market, Marchipack has exchanged and cooperated with many scientific research institutions at home and abroad, and the capabilities of R&D, manufacturing, and engineering projects have been rapidly improved.

There are more than 300 varieties of products we have and various products are increasingly perfect.

>All the electrical control components are well-known brands with reliable performance.

>Do all the factory inspections, full testing, to ensure that the quality meets market demand.

What do we do?

> 1. Vertical packaging machine
> 2. Premade pouch packaging machine
> 3. Multilane stick pack packaging machine
> 4. Linear bottle filling machine
> 5. Secondary packaging machine
> 6. Vacuum packaging machine
> 7. Heavy bag packaging machine
> 8. Cartoning machine
> 9. Other ancillary machines

History Cooperation

Since its inception, Marchi has always been based on customer needs and has provided comprehensive overall design services for more than 100 large enterprises, and has won recognition and praise from the companies.

Packaging & Shipping

Firmly packed fumigation-free wooden carton, with shipping marks.Check packing list checking without any missing.

Packaging about protect the goods against damages during handling,storing and transportation.

World famous shipping company promise maritime safety.

[FAQ]

1.Payment Terms?
40% down payment at order against the invoice.
60% of the contract value shall be payable against presentation of shipping documents, invoice and Seller's draft drawn at sight on the opening bank.


2.Machine lead time?

45-60day base upon the receive of downpayment.


3. Installation and commissioning engineer fee?
100 USD/each day/one person, Board and lodging, visa and round trip tickets shall be born by buyer.


4. Are you a manufacturing or trading company?
We are a manufacturing company, have design, manufacturing, sale, aftersale service complete and individual departments.


5. What is the estimate machine lifetime?
 In the case of proper maintenance of equipment, according to past customer statistics, it can be used for 10-20 years.
