coconut flour/coating flour /semolima flourautomatic form fill seal packaging machine

FOB Reference Price:Get Latest Price
$20,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
3P 380v 50Hz
Model Number:
MC 5000B MC 7300B MC 1100B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Application:
Food, Beverage, Commodity, Medical, Chemical, Apparel, starch powder
Packaging Material:
Plastic, Paper
Type:
Multi-Function Packaging Machine, Multi-Function Packaging Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, instant milk powder, food powder
Condition:
New
Function:
bag making coding,filling,sealing,counting
Packaging Type:
Bags, Foil, Pouch
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Place of Origin:
Guangdong, China
Brand Name:
Marchi
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Video technical support, Online support
Capacity:
35-60bags/min
Accuracy:
±0.2%
Air Consumption:
0.6~0.8 MPa
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
International export standard
Port
Guangzhou,China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Application

It's only suitable for powder form product such as spice powder, flour, cocoa powder, turmeric powder, chemical powder, pepper powder etc.

Product Introduction

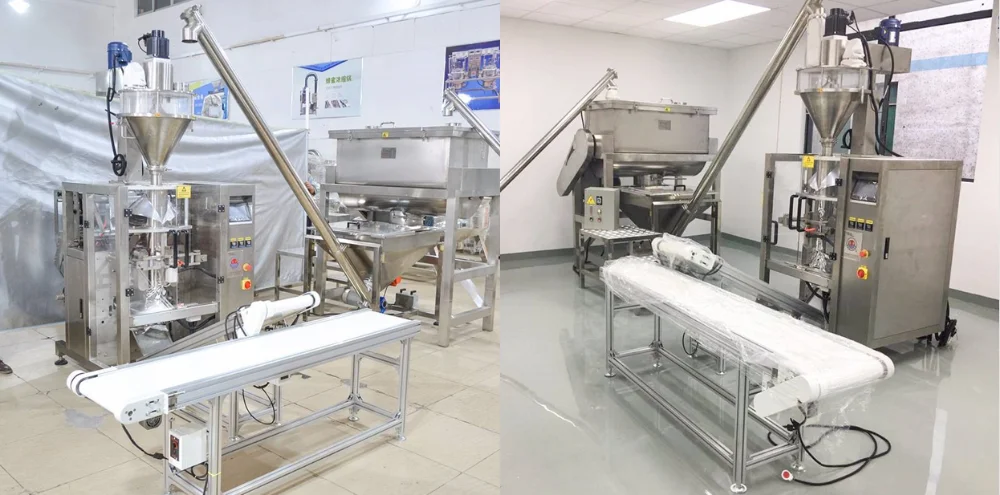

coconut flour/coating flour /semolima flourautomatic form fill seal packaging machine
Vertical Packaging Machine
Model
MC5000D
MC5000B
MC7300B
Packaging size L×W(mm)
(50~280)×(70~180)
(50~340)×(80~250)
(50~460)×(80~350)
Capacity(pouch/min)
30~80
20~70
20~50
Pouch material
 laminated film, aluminum foil, aluminum-plated film etc.
Pouch type
Pillow bag, gusset bag, punching bag, quad seal bag, valve bag
Reel inner diameter(mm)
Φ75
Φ75
Φ75
Max reel outer diameter(mm)
Φ400
Φ450
Φ500
Power supply
380V, 50~60Hz, 3kw
Compressed air
0.6MPa 350L/min
Dimension L×W×H(mm)
1470×988×1400
1800×1220×1680
1854×1440×1930
Machine material (optional)
carton steel, stainless steel 304/316, telfon
Screw Elevator
Model
MF-S2-2K
MF-S2-3K
MF-S2-5K
MF-S2-7K
MF-S2-8K
lifting capacity
2m3/h
3m3/h
5 m3/h
7 m3/h
8 m3/h
Diameter of tunnel
φ102
φ114
φ141
φ159
Φ168
Total power
0.58KW
0.78W
1.53KW
2.23KW
2.23KW
Thickness of Hopper
1.5mm
1.5mm
1.5mm
1.5mm
1.5mm
Thickness of Pipe
2.0mm
2.0mm
2.0mm
3.0mm
3.0mm
Outer dia.of Screw
Φ88mm
Φ100mm
Φ126mm
Φ141mm
Φ150mm
Thickness of Pitch
2mm
2mm
2.5mm
2.5mm
2.5mm
Dia.of Axis
Φ32mm
Φ32mm
Φ42mm
Φ48mm
Φ42mm
Thickness of Axis
3mm
3mm
3mm
4mm
4mm
Auger Filler
Model
MC-LL-25L
MC-LL-50L
MC-LL-75L
Hopper volume(L)
25L
 50L
75L
Packaging weight(g)
1~200
10~2000
10~5000
Packaging accuracy(g)
≤100,≤±2%;100~500,≤±1%;≥500,≤±0.5%
Capacity(time/min)
40~100
30~100
10~30
Power supply
3P AC208~415V 50/60Hz

Technical Features

---Vertical Packaging Machine---
* Integrates the functions such as bag-making, filling, sealing, printing, punching, and counting.
* Adopts servo motor for film pulling with automatic offset correction. Two types of driving motor.
* Off-the-shelf components ensure quick service response.
* No-tool changeover, user-friendly operation process.
* All the electrical components adopt local and foreign well-known brands with reliable performance.
* Two types of vertical sealing mechanism, i.e. center sealing type and platen press type.
* Robust, stainless steel frame.

--- Auger Lifter---
* motor driven type.
* good sealing environment.
* Tailor-made size.
* Stainless steel 304/316.

---Auger Filler---
* Stainless steel structure, convenient for cleaning.
* Servo motor and servo drive control the screw.
* PLC controls the system, touch screen, a user-friendly operation panel.
* Various product adjusted parameter formulas can be stored.
* Accessories can be replaced, adapting to various materials such as ultra-fine powders and tiny granule.

Optional Ancillary Machines
* Metal Detector
* Check Weigher
* Collecting Table
* Carton Machine

Product Details

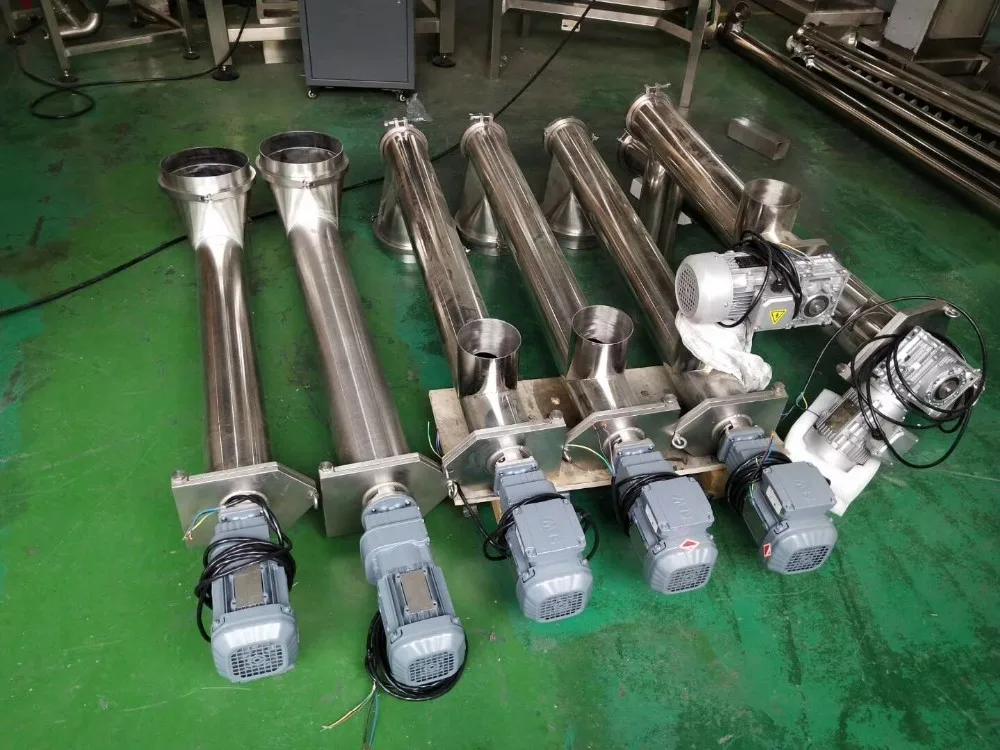

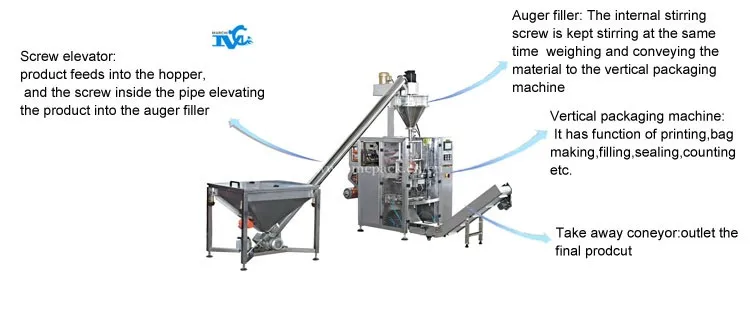

Screw elevator: driven by motor, hopper size tailor-made, it provides a good sealing environment, protects powder from pollution.

Auger filler: driven by the servomotor, it has a sensor to ensures the product level inside the hopper, and is very convenient to clean.

Film releasing part: air shaft fix the film tightly, at the same time the film releasing motor drive it to pull the film up smoothly, when the film runs out, the machine will send the alarm single.

Printing and mark sensor: you can print production date/ batch number/ place of origin/ etc. Max. 4 lines character are acceptable, and you can choose the printer brand as well; mark sensor through capturing the color mark to tell machine the bag length.

Film correction mechanism: when misalignment of the back seal/deformation of the bag happen, the positioning sensor senses the change of the film position, a worker operating through the touch screen, and the mechanism will auto change the film position rightly.

Bag former: within the acceptable range, different ba sizes can be made by changing the bag former, and the replacement process is very simple.remark: quad seal bag can't share the same machine with pillow type bag.

Horizontal sealing mechanism: it has sealing cooler/ air deflating device, the surface pattern of the horizontal sealing mold can be changed according to bag design.

Electric cabinet: different configuration level can be made basis on the customer demands.the electric and pneumatic control device are separately in the different cabinets.

Customers Factories

       frozen dumpling packaging machine line

       detergent woven bag packaging machine

      vertical packaging and cartoning production line


       automatic carton pallet manipulator (ABBbrand)

      chemical  mixing and woven bag sewing machine

       bottle filling capping and labeling production line

Service &Certificate

1.Turnkey Solution Provider

Marchipack has the ability to be your turnkey solution provider, and we have a unique team of mechanical, electrical, program process engineers which allows us to deliver your solution smoothly.

2. Factory Acceptance Testing

The engineers available in the service team is also utilized for trial testing thoroughly as per the client's requirements before the dispatch.

3.Professional Technical Support

A board range of technical supports are provided aims at ensuring our customers experience the maximum up-time after-sale service, these services include:

▪  Installation and commissioning specification

▪  Telephone /video and online support

▪  Preventive maintenance programs design

▪  Equipment optimization services

▪  Trained engineer machine installation and commissioning paid service

4.Commissioning and Troubleshooting Training

Qualified training ensures machine effectiveness, minimize cost and reduce downtime, Marchi pack provide factory-based technical training that can be delivered either in our factory or customer's site.

5.High Availability Genuine Spare Parts

All critical spare parts are ready for instant dispatch to our customers, genuine spare parts guarantee to protect and maximize machine lifetime.

Our Company

Where we are?

Guangzhou city, Guangdong Province, China
Why choose us?
√ PepsiCo China preferred supplier
√ Turnkey solution provider
√ 25 years' working experiences
√ Several hundred customers cases
√ Research, design, manufacturing, selling, after sale service - complete and individual department
√ A young and ambitious team that keeps learning

While focusing on the development of the packaging equipment market, Marchipack has exchanged and cooperated with many scientific research institutions at home and abroad, and the capabilities of R&D, manufacturing, and engineering projects have been rapidly improved.

There are more than 300 varieties of products we have and various products are increasingly perfect.

>All the electrical control components are well-known brands with reliable performance.

>Do all the factory inspections, full testing, to ensure that the quality meets market demand.

What do we do?

> 1. Vertical packaging machine
> 2. Premade pouch packaging machine
> 3. Multilane stick pack packaging machine
> 4. Linear bottle filling machine
> 5. Secondary packaging machine
> 6. Vacuum packaging machine
> 7. Heavy bag packaging machine
> 8. Cartoning machine
> 9. Other ancillary machines

History Cooperation

Since its inception, Marchi has always been based on customer needs and has provided comprehensive overall design services for more than 100 large enterprises, and has won recognition and praise from the companies.

Contact Us
Packaging & Shipping

Firmly packed fumigation-free wooden carton, with shipping marks.Check packing list without
any missing

Packaging about protect the goods against damages during handling,storing and transportation.

World famous shipping company promise maritime safety.

[FAQ]

1.Payment Terms?
40% down payment at order against the invoice.
60% of the contract value shall be payable against presentation of shipping documents, invoice and Seller's draft drawn at sight on the opening bank.


2.Machine lead time?

45-60day base upon the receive of downpayment.


3. Installation and commissioning engineer fee?
100 USD/each day/one person, Board and lodging, visa and round trip tickets shall be born by buyer.


4. Are you a manufacturing or trading company?
We are a manufacturing company, have design, manufacturing, sale, aftersale service complete and individual departments.


5. What is the estimate machine lifetime?
 In the case of proper maintenance of equipment, according to past customer statistics, it can be used for 10-20 years.
